Rev-A-Shelf half moon lazy Susan Specifications

(Upper Shelf Support Bracket) Rev-a-shelf has a Standard Bracket for normal cabinet applications and a Euro Bracket for frameless cabinets, utilizing 90 blind corner base hinges. The Euro Bracket realigns the pivot of the rev-a-shelf lazy susan trays to allow them to clear the door which (in this application) ends up inside the normal cabinet opening. The shelf and lazy susan hardware do take a bit of vertical space due to the heavy duty Rev-a-Shelf construction.

blind corner cabinet lazy susan rev-a-shelf
Standard Bracket
rev-a-shelf half moon lazy susan for a blind corner cabinet
90 Hinge Bracket
This lazy susan tray system for a corner cabinet is based on minimum cabinet openings for the tray to pivot and pull-out. Therefore, when installing this tray system in a frameless cabinet with 90 BCB hinges, you must add 1 1/4" to the minimum opening dimensions. This will then provide a net minimum opening which will take into consideration for opening obstructions such as the door or hinges.

Example: 31" Tray System
13 1/4" suggested minimum opening
+1 1/4" allowance for bracket & door
=14 1/2" net minimum cabinet opening
(before door and hinges)

Blind Corner cabinet Polymer Tray Organizers are available in two styles:
Glossy 2800/Textured 6800 Series

Plus Hardware Kits for wood and melamine trays.

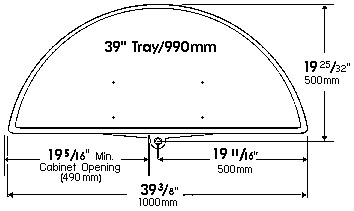

Half Moon Slide & Shelf Support

The Half-Moon blind corner cabinet lazy susan Trays and Slides work off a simple 4 hole pattern system for flexibility and upgrade capability with our slides. Hardware kits for custom shelves would work the same.

Minimum Inside Cabinet Depth
