Description

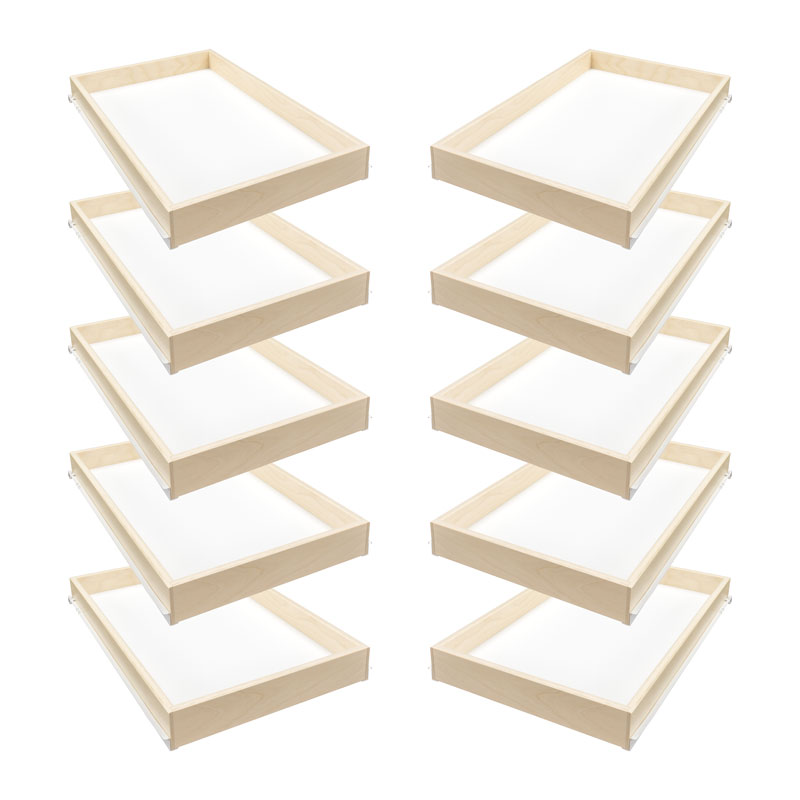

10 Newline shelves with shipping included in the price. Newline are less expensive than the premium shelves but keep the same great wood sides and hardware. No lacquer or joinery. Standard 3/4 extension slides. 9-ply Baltic Birch for the front, back, and sides.
What's Included:
• 10 Custom Pullout Shelves • 10 Complete set of the selected Slides • 10 sets of Mounting Hardware for the selected Mounting Styles • 1 or 2 Door Protectors per shelf (under 19" wide gets 1) • 10 Wood Mounting Screws per shelf (5/8" long) |
Clear Opening Width
The available space between the most narrow 2 points of your cabinet's opening, at the level the shelf will be installed. Between any protruding hinges, doors, face frames, etc.
It is typical for the lower pullout shelf to be slightly narrow that the upper, due to the hinges usually only interfering with the bottom. If you have a Frameless Cabinet,
you may need to deduct for the L Brackets used by the Base or Half Shelf Mounting Styles.
Do not measure existing pullout shelves or drawers to obtain the Clear Opening Width
Shelf Depth
Select the Shelf Depth that would fit inside of your available cabinet interior depth, behind any doors or framing. This is the actual length of the pullout shelf. The Rear Socket Mounting Style
may add 1/4" more to the Shelf Depth selection, so please allow for 1/4" Extra room when ordering to be safe.
Do not select the Depth size larger than your interior cabinet depth.
Mounting Styles
Base Mount | Mounting on top of any existing surface, i.e. Bottom/Floor of cabinet, Full Fixed/Adjustable Shelf. |
Half Shelf Mount | Utilizing the pesky Half Shelf in the back of the cabinet, or an existing shelf that's more than 2" shorter than the cabinet depth. |
Side Mount | For mounting an upper shelf with no existing fixed/adjustable shelf. Would attach to the interior sidewalls using a form of Spacer or Wood Strip so the pullout can be narrow enough to slide through the opening. |
Rear Socket Mount | Similar to the Side Mount, only the Rear of the shelf will be attached to the cabinet's back wall. |
The Half Shelf, Side Mount, and Rear Sockets Mounting Styles all attach to the Face Frame or Sides of the cabinet on the front, the rear attachment is all that changes. |
We do not automatically include spacers. They can be found in our Hardware Section
You can find more information on our different Mounting Styles HERE.
You can find more information on our different Mounting Styles HERE.
Your shelf is custom made to order in the USA usually ships in 1 - 2 weeks.
10 Newline Shelves For $579 With U.S. Shipping Included
Excludes HI & AK
Specifications | |
Height | 2 5/8" |
Depth | From 11 3/4" to 25 3/4" (2" increments) |
Slides | 3/4 Extensions |
Capacity | 75 lbs. |
Wood | 1/2" 9-Ply Birch sides / 1/4" Birch bottom |
Finish | No Lacquer |
Joints | Butt Joint corners/bottom |
Warranty | 2 Years |
If you have any questions on measuring, mounting, or ordering please emails us at [email protected] or call us at 1-800-598-7390
10 Newline Shelves for $579 + Free Shipping
Code: NEWL10 Description
4.89/5 Stars ( 35 Reviews )
$579.00
FREE SHIPPING
