Description

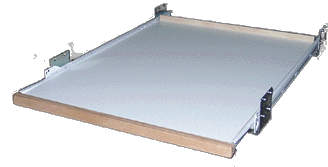

Our least expensive shelf with no sides, great for computer and video storage. No door protectors needed as front trim is wider that the shelf. Includes Oak or Maple hardwood front accents of your choice! Bottom is 5/8" thick melamine with a 2" tall plywood strip on the rear of the shelf. The maximum width for the economy shelves is for a 24" opening. The exception is when they will be used for a keyboard tray and the weight is minimal. Order base mount for keyboard tray and reverse the L brackets to hang from a flush desktop.
Mounting Half Shelf or Rear Socket styles: The shelf must be set back from the cabinet face because the wood front accent extends 1/2" further than the slides
| What's Included:
• Custom Pullout Shelf • Complete set of the selected Slides • Mounting Hardware for the selected Mounting Style • 10 Wood Mounting Screws per shelf (5/8" long) |
Clear Opening Width
The available space between the most narrow 2 points of your cabinet's opening, at the level the shelf will be installed. Between any protruding hinges, doors, face frames, etc.
It is typical for the lower pullout shelf to be slightly narrow that the upper, due to the hinges usually only interfering with the bottom. If you have a Frameless Cabinet,
you may need to deduct for the L Brackets used by the Base or Half Shelf Mounting Styles.
Do not measure existing pullout shelves or drawers to obtain the Clear Opening Width
Shelf Depth
Select the Shelf Depth that would fit inside of your available cabinet interior depth, behind any doors or framing. This is the actual length of the pullout shelf. The Rear Socket Mounting Style
may add 1/4" more to the Shelf Depth selection, so please allow for 1/4" Extra room when ordering to be safe.
Do not select the Depth size larger than your interior cabinet depth.
Mounting Styles
| Base Mount | Mounting on top of any existing surface, i.e. Bottom/Floor of cabinet, Full Fixed/Adjustable Shelf. |
| Half Shelf Mount | Utilizing the pesky Half Shelf in the back of the cabinet, or an existing shelf that's more than 2" shorter than the cabinet depth. |
| Side Mount | For mounting an upper shelf with no existing fixed/adjustable shelf. Would attach to the interior sidewalls using a form of Spacer or Wood Strip so the pullout can be narrow enough to slide through the opening. |
| Rear Socket Mount | Similar to the Side Mount, only the Rear of the shelf will be attached to the cabinet's back wall. |
| The Half Shelf, Side Mount, and Rear Sockets Mounting Styles all attach to the Face Frame or Sides of the cabinet on the front, the rear attachment is all that changes. | |
We do not automatically include spacers. They can be found in our Hardware Section
You can find more information on our different Mounting Styles HERE.
You can find more information on our different Mounting Styles HERE.
Mounting Half Shelf or Rear Socket styles: The shelf must be set back from the cabinet face because the wood front accent extends 1/2" further than the slides
Your shelf is custom made to order in the USA usually ships in 1 - 2 weeks.
FREE U.S. Shipping Custom Shelf Orders Over $750 *
Excludes HI & AK
| Specifications | |
| Capacity | 75 lbs. |
| Depth | From 12 1/4" to 26 1/4" (2" increments) |
| Wood | 5/8" Melamine Bottom & Oak / Maple Front Trim |
| Warranty | 2 Years |
If you have any questions on measuring, mounting, or ordering please emails us at [email protected] or call us at 1-800-598-7390
